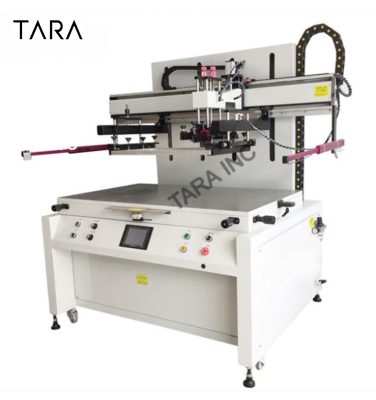

Product Description
|
Model |
HP-80130V |
|
Drive system |
Electric |
|
Max. Printing size |
800*1300mm |
|
Working table size |
900*1400mm |
|
Max. printing speed |
600 cycles/hr |
|
Air requirement |
5-7 bar |
|
Machine dimension |
1500*1700*1700mm |
|
Net weight |
710kg |
|
Power |
380V 50/60Hz |
Features:
1. Mitsubishi PLC with touch screen or PCB controlled.
2. Integrated E-stop safety bar & light curtains.
3. Motor driven vertical & horizontal strokes.
4. X/Y/R positioning table with or without vacuum table.
5. Squeegee angle and calibrated height adjustment.
6. Regulated squeegee pressure with gauge.
7. Floor levelers & casters.
...
