Product Description
Application Area
plastic cup, pencil, lunchbox, balloon, cosmetics, glass bottles, plastic bottle, coffee cup, plastic bucket, plastic containers, drinking glass, etc
Big Water Buckets Paper Container Jars Pail Screen Printing Machine Round/Plastic Cup Printing Machine

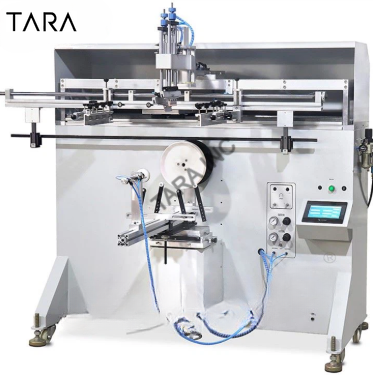

This HA-5A screen Printing Machine is suitable for plastic cup, pencil, lunchbox, balloon, cosmetics, glass bottles, plastic bottle, coffee cup, plastic bucket, plastic containers, drinking glass.
Specifications:
|
Model NO. |
HA-5A |
|
Operation |
Pneumatic |
|
Machine Size |
1300 x 1650 x 1400mm |
|
Max.Printing Area |
1000 X 300mm |
|
Max.Printing Speed |
700pcs/hr |
|
Main Voltage |
220V 60MHz 50W |
|
Net Weight |
260KG |
|

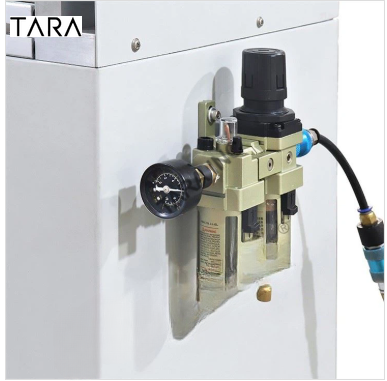

Air Pressure |
5-7bar |
|
Application Area |
plastic cup, pencil, lunchbox, balloon, cosmetics, glass bottles, plastic bottle, coffee cup, plastic bucket, plastic containers, drinking glass, etc |
Cylindrical Screen Printers Features:
• Microcomputer controls the functions and actions
• Electric motor drive, stability and fast;

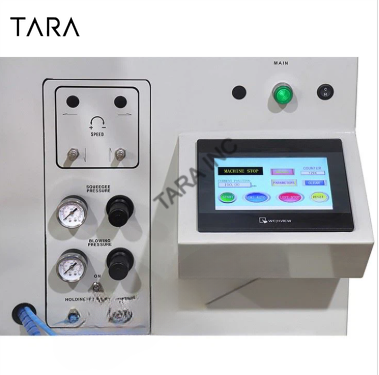

• Brand PLC with touch screen controlled
• Low noise, stable performance, simple operation
• High accuracy work table

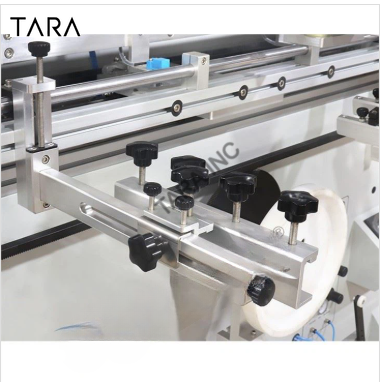

• Screen frame angle & tilt adjustable
• Squeegee angle adjustable
• Installed E-stop button and safety light curtain.
With more than 24 years experience and hard working in R&D and manufacturing since 1996, we are fully capable of supplying machines for many industries such as stationer, toys, plastic gift, electrical appliances, electronic, etc. Single-color, double-color and multi-color printing machines are available, as well as custom-made machines are welcome
