Product Description

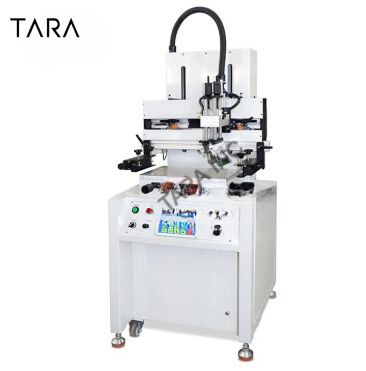

Air Suction Worktable PCB Printer / CD Flat Screen Printing Machine

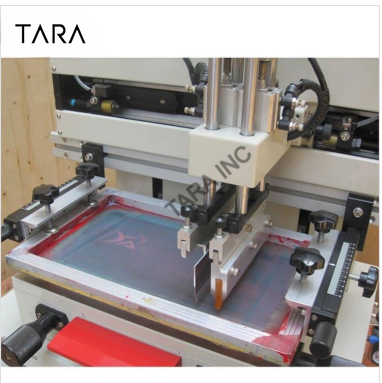

The HP-2030V is a small print size flat screen printing machine, which is equipped with two AC motors to control both the vertical and horizontal motions.
|
MODEL |
HP-2030V |
|
CONTROL SYSTEM |
12V PCB board |
|
DRIVE SYSTEM |
Pneumatic |
|
VOLTAGE |
110V/220V/230V 50/60Hz |
|
WORKTABLE SIZE |
400x 240mm |
|
MAX PRINT SIZE |
300x 200mm |
|
PRINTING SPEED |
1200~1500 pcs/hr |
|
WEIGHT |
about 150 kg |
|
DIMENSION |
660 x 650 x 1550 mm |
Features:

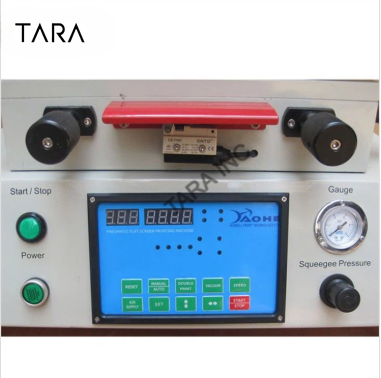

1. Microprocessor controlled - PLC with touch screen or 12V PCB board.
2. The lifting and printing are driven by high precision motor. 3. Guide rail sliding structure, high precision, smooth operation. 4. Scraper constant pressure device to ensure the pressure stability in the printing process. 5. The Angle of scraper/back ink knife can be adjusted arbitrarily.
Application:
HOWELL's HP-2030F screen printing machine is suitable for printing PCB board, silicone, textiles, plastic keys, PET, cardboard, nameplate, trademark, IC board, thin film switch circuit, mobile phone lens, glass, liquid crystal display board and other plane materials.
...
